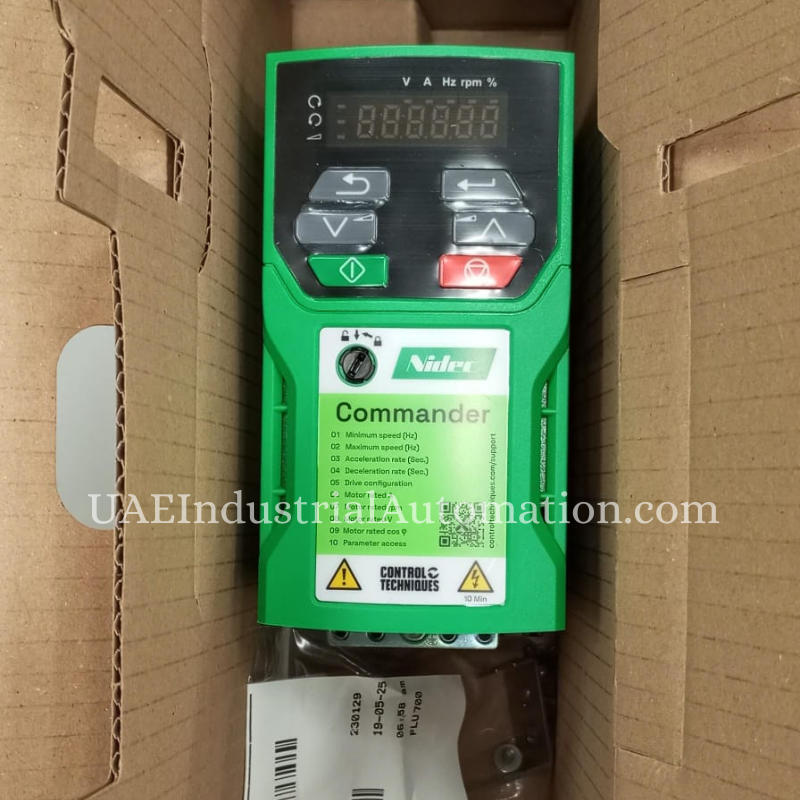

⚡️ Nidec Control Techniques Commander C200: 1HP Single Phase VFD (C200-01200042A10100AB100)

$230.00

Nidec Control Techniques Commander C200 1HP Single Phase VFD (C200-01200042A10100AB100) Price in UAE

Specification Detail
Manufacturer Control Techniques (Nidec)
Series Commander C200
Part Number C200-01200042A10100AB100
Rated Horsepower 1.0 HP (Normal & Heavy Duty)
Rated Current 4.2 A
Input Voltage 200-240 VAC
Input Phase Single Phase (1PH)
Max Output Frequency 550 Hz
Enclosure Rating IP20
Communications Built-in Modbus RTU (via AI-485-ADAPTOR option)
Overload Capacity 150% for 60 seconds (up to 180% for 3s)
Quantity
Last items in stock

  Delivery policy

For our overseas customers, we offer a very competitive and fast delivery service.

The Nidec Control Techniques Commander C200 Series Variable Frequency Drive (VFD) offers a simple, compact, and high-performance solution for general-purpose motor speed control. This specific 1HP, 230V Single Phase AC Drive (Part No: C200-01200042A10100AB100) is engineered to maximize productivity while minimizing system complexity and cost.

Key Features for Industrial Automation

  • Exceptional Motor Control: Utilizes Control Techniques’ advanced RFC-A (Rotor Flux Control) algorithm, providing high-stability, open-loop control for both induction (AC) and permanent magnet motors (PM), making it a versatile motor controller.
  • Integrated PLC Functionality: The onboard PLC simplifies local control, reducing the need for an external Programmable Logic Controller (PLC) in many applications, thereby saving panel space and cost.
  • Dynamic Braking Included: Features a built-in Dynamic Braking Transistor, allowing for rapid motor deceleration without the need for an external chopper (external resistor required).
  • Quick Start-up: Get the drive operational in minutes—only four key parameters are required for initial setup.
